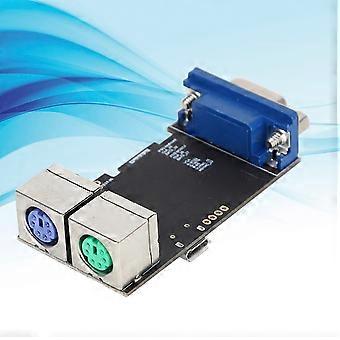

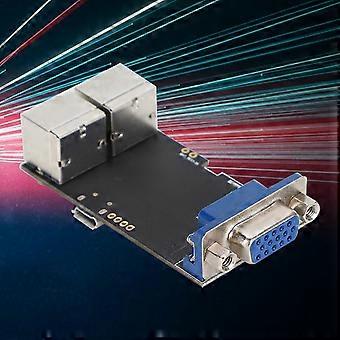

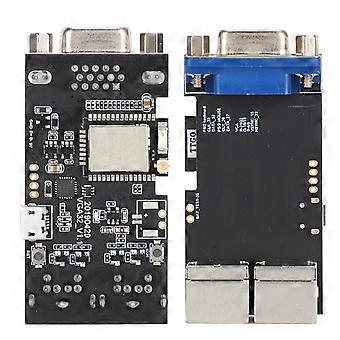

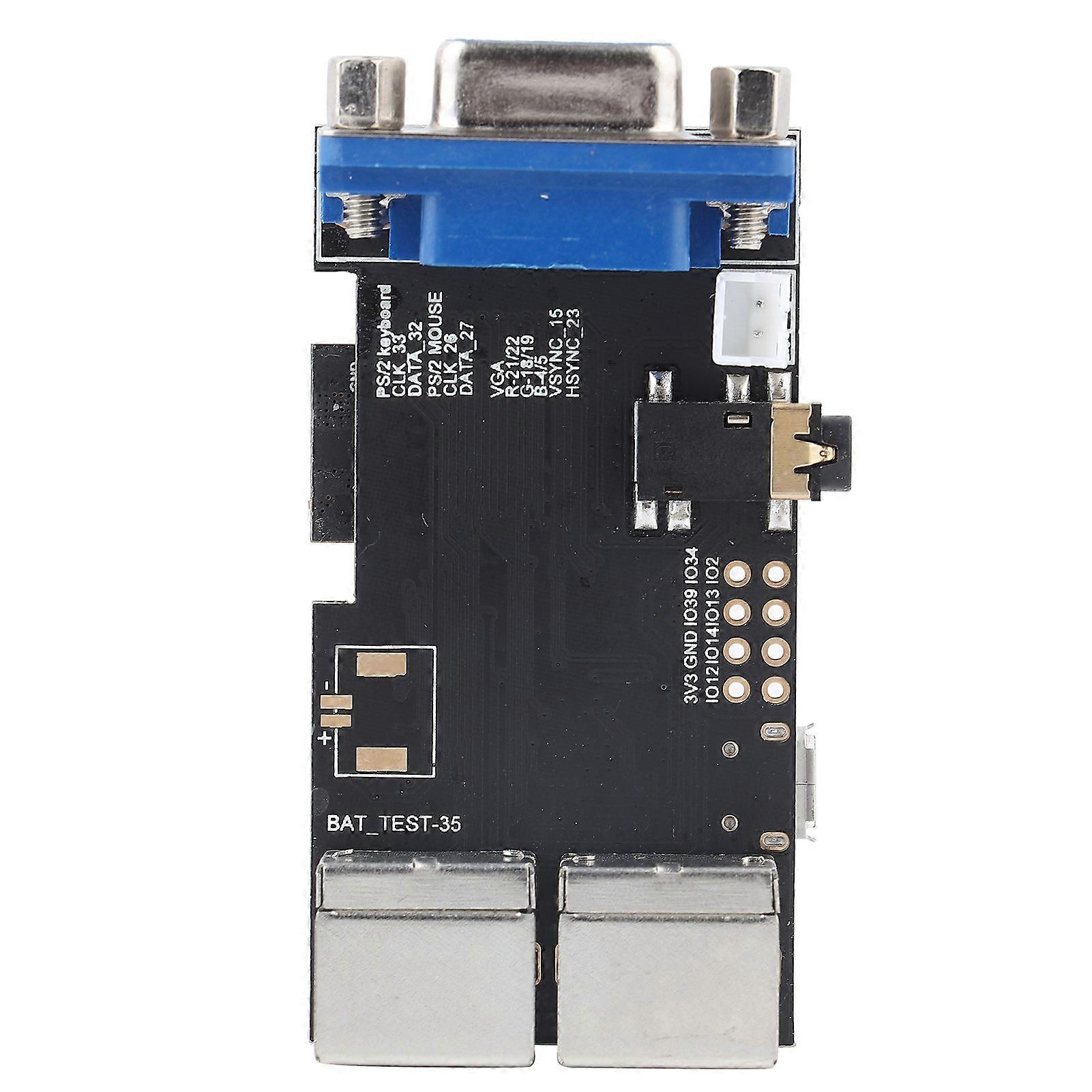

VGA32 PS/2 Control Module For Mouse Keyboard Micro32 Chipset Compliant For Bluetooth Standard

Features:Modular interface: UART, SPI SDIO, I2C LED PWM, TV, PWM, I2S, IRGPIO, Capacitor, Touch, Sensor, ADC, DACLNA, Preamplifier.WiFi supports FCC/CE-RED/IC/TELEC/KCC/SRRC/NCC.The WiFi communication distance is up to 300 meters and the transmission power is 22dBm.Compliant with Bluetooth V4.2BR / EDR and BLE standards, sensitivity is -97dBm.NZIF Receiver Class-1, Class-2 and Class-3 Transmitter AFH.Support network IPv4/IPv6/SSL.TCP/UDP/HTTP/FTP/MQTT.Specifications:Material: PCBSize: Approx. 6.5*3.2*1.6cm/2.56*1.26*0.63inchChipset: Micro32FLASH: QSPI Flash 4MB/PSRAM 8MBSRAM: 520kB SRAMButton: reset, I036Extended function: VGA, PS/2USB To TTL: CP2104Modular interface: UART, SPI SDIO, I2C LED PWM, TV, PWM, I2S, IRGPIO, Capacitance Touching Sensor, ADC, DACLNA, preamplifierOnboard clock: 40MHz crystal oscillatorWorking voltage: 2.7-3.6VWorking current: Approx. 30mASleeping current: 230uAOperating temperature range: -40-85°CWiFi Instructions:Standard: FCC/CE-RED/IC/TELEC/KCC/SRRC/NCCProtocol: 802.11b/g/n (802.11n, speed up to 150Mbps) A-MPDU and A-MSDU aggregation, support 0.4uS guard intervalFrequency range: 2.4GHz~2.5GHz(2400M-2483.5M)Transmitted power: 22dBmCommunication distance: 300m/984.25ftBluetooth Instructions:Protocol: Compliant with Bluetooth V4.2BR/EDR and BLE standardsRF: Sense NZIF Receiver Class-1, Class-2 and Class-3 Transmitter AFH with a sensitivity of -97dBmAudio: CVSD And SBC AudioSoftware Specification:WiFi Mode: Station/SoftAP/SoftAP + Station/P2PSecurity mechanism: WPA/WPA2/WPA2-Enterprise/WPSEncryption Type: AES/RSA/ECC/SHAFirmware upgrade: UART download/OTA (download and write firmware via network/host)Software development: Support Cloud Server Development/SDK for User Firmware DevelopmentNetworking protocol: IPv4/IPv6/SSL.TCP/UDP/HTTP/FTP/MQTTUser Configuration: AT + instruction set, cloud server, for Android/iOS appOS: Suitable for FreeRTOSPackage list:1 x VGA32 Control Module.Note:Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.
