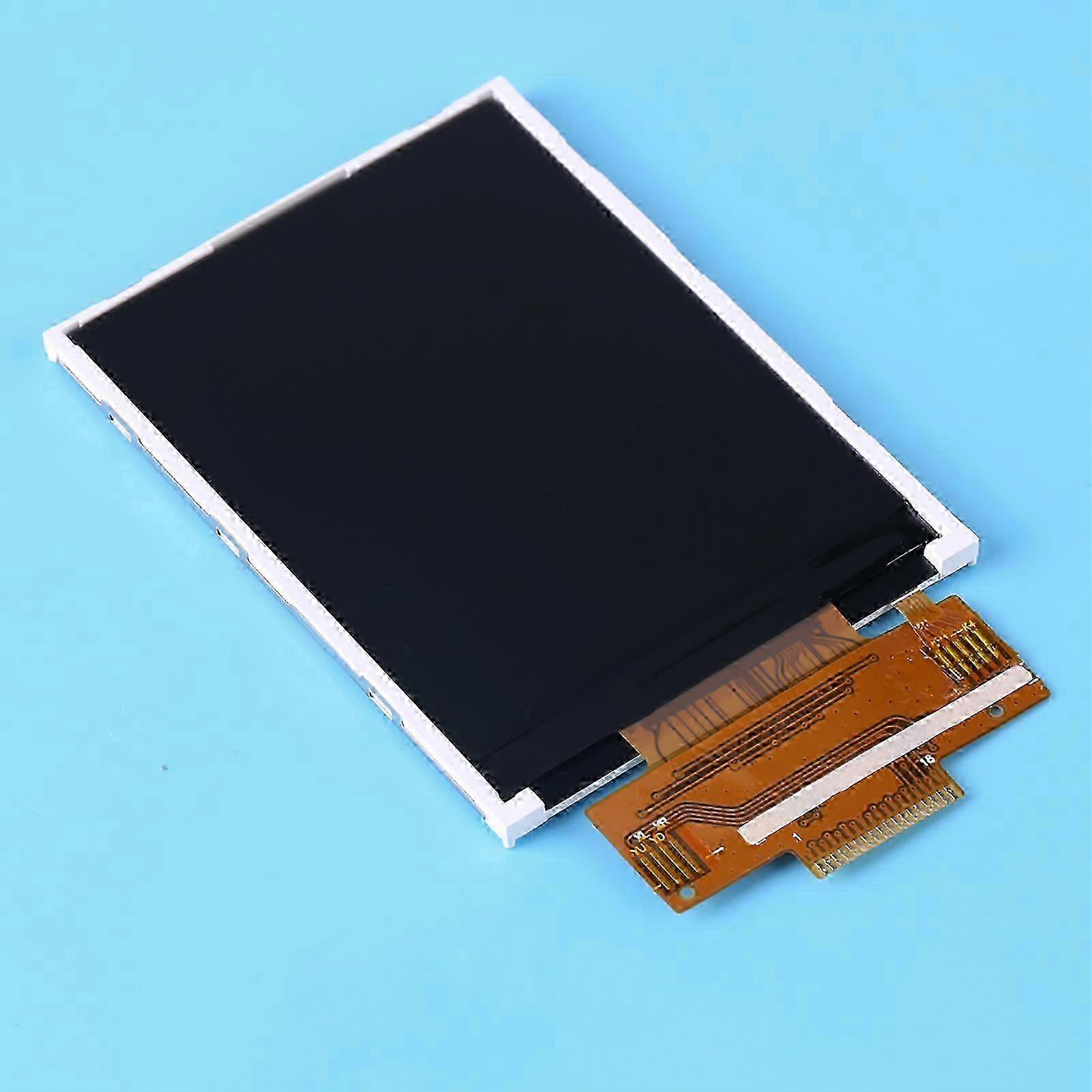

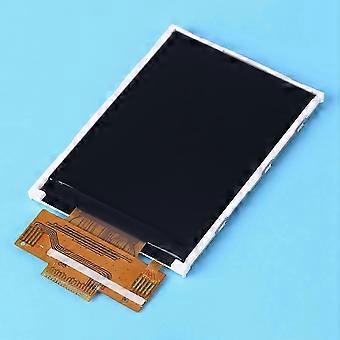

Descriptions: <br>This 2.8" TFT LCD module, 240x320 high resolution, can be can be easy controlled, such as AVR, STM32,It can be used in any embedded systems which require display high quality colorful image. <br>Features: <br>2.8" TFT LCD Module, 240x320 High resolution. <br>2.8inch, 4-wire SPI serial bus, driver chip is ILI9341. <br>This 2.8" TFT LCD Module can be can be easy controlled, such as AVR, STM32. <br>It can be used in any embedded systems which require display high quality colorful image. <br>Perfect upgrade true color. <br>Support 3.3V input voltage <br>Specification: <br>Material:LCD Screen <br>Size: 2.8 inch <br>Control chip: ILI9341 <br>Resolution: 240*320 <br>Display area: 43.20（W）*57.60（H） <br>Interface type: 4-wire SPI interface <br>Number of pins: 18pin <br>Display color: 262K full color <br>Working temperature: -20~70 degrees <br>Pixel size: 0.18*0.18 (mm) <br>Working voltage: 3.3V <br>Display type: TFT <br>Weight:16g <br>Structure: <br>Interface: <br>PIN No. <br>Symbol <br>Description <br>1 <br>GND <br>Ground <br>2 <br>RESET <br>LCM Reset pin Signal is active low. <br>3 <br>SCL <br>This pin is used serial interface clock in 4-wire 8-bit serial data interface. <br>If not used, this pin should be connected to IOVCC or GND. <br>4 <br>D/C <br>-4-line system (D/CX): Serves as command or parameter select. <br>Fix to IOVCC level when not in use. <br>5 <br>CS <br>Chip select pin ("Low" enable) <br>6 <br>SDA <br>Serial input signal. <br>The data is applied on the rising edge of the SCL signal. If not used, fix this pin at IOVCC or GND <br>7 <br>SDO <br>Serial output signal. <br>The data is outputted on the falling edge of the SCL signal. If not used, open this pin <br>8 <br>CND <br>Ground <br>9 <br>VCC <br>Power supply for LCM (2.8V-3.3V) <br>10 <br>LEDA <br>Anode of Backlight (3.0V-3.4V Typical:3.2V) <br>11 <br>LEDK1 <br>Cathode of Backlight <br>12 <br>LEDK2 <br>Cathode of Backlight <br>13 <br>LEDK3 <br>Cathode of Backlight <br>14 <br>LUDK4 <br>Cathode of Backlight <br>15 <br>XL <br>Touch panel control pin <br>16 <br>YU <br>Touch panel control pin <br>17 <br>XR <br>Touch panel control pin <br>18 <br>YD <br>Touch panel control pin <br>Package Included: <br>1x TFT LCD Display (without touch panel) <br>Note: This model without touch panel<br>1、2.8 inchTFT LCD Module, 240x320 High resolution <br>2、2.8inch, 4-wire SPI serial bus, driver chip is ILI9341 <br>3、This 2.8 inch TFT LCD Module can be can be easy controlled,such as AVR, STM32. <br>4、It can be used in any embedded systems which require display high quality colorful image <br>5、Perfect upgrade true color Note: Due to the light and screen setting difference, the item's color may be slightly different from the pictures. Please allow slight dimension difference due to different manual measurement. Sold by-Dadangjia
