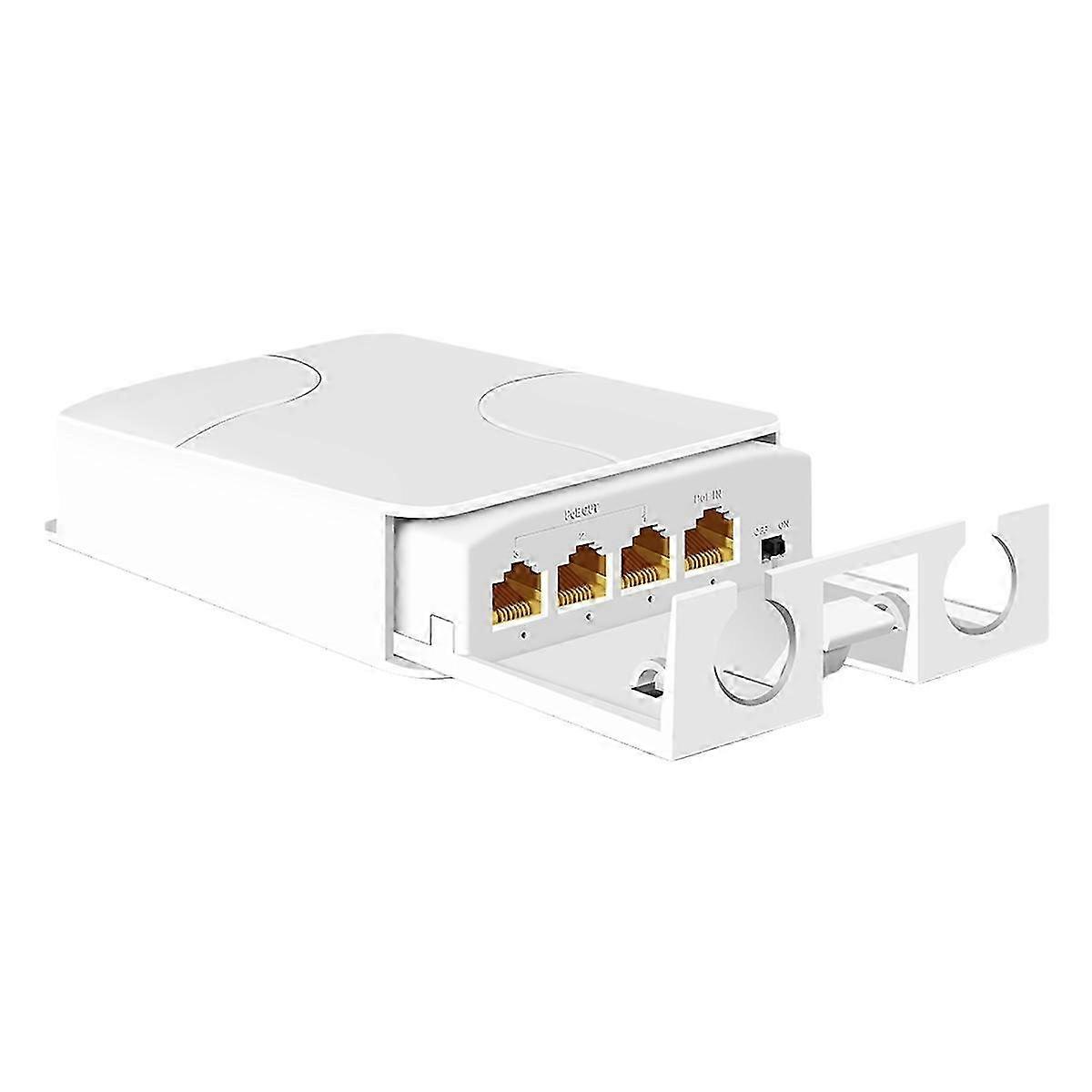

1. Comply with IEEE 802.af Power over Ethernet (10/100M/1000M Supported) 2. Automatically detects and protects PoE equipment from being damaged by incorrect installation 3. Plug-and Play no configuration required 4. 3-Port PoE extender can forward both Ethernet and PoE power for 1 terminal equipment via Cat5 ,Cat5e,Cat6,Cat6e,UTP cable. 5. 3-Port PoE Extender has 10/100/1000M Lan ports, among them, one for power input, the other for power output. Comply with 10/100/1000 BASE-TX,IEEE 802.3 af-PoE. Used with AP, IP camera, IP telephone and the other network equipment in the situation of the lack of power line or far away from the power outlets. Installed at hotels, schools, buildings, villages, etc. Network standard: IEEE802.3, IEEE802.3u, IEEE802.3x PoE connection standard: IEEE 802.3af/at PoE port input power: input maximum 30W PoE port output power: output maximum 24W/average 8W per port PoE power receiving input transmission core: 1/2+, 3/6-, 4/5+, 7/8- PoE power output transmission core: 1/2+, 3/6- POE power supply transmission distance:less than equal 100 meters Power supply transmission medium: 10/100/1000 BASE-TX: Category 5 and above non-screen shielded twisted pair Address Table: 2K Packet Buffer Memory: 48 Switching Capacity: 1.0Gbps Network Protocol: IEEE 802.3i-10BASE-T, IEEE 802.3u: 100BASE-TX, IEEE 802.3x-Flow Control, IEEE 802.3af-Power over Ethernet Regulation Compliance: FCC Part 15B, ROHS Directive 2011/65/EU, Low Voltage Directive 2014/35/EU,EMC Directive 2004/108/EC Working temperature:-10 to 55 Working Humidity:10%-90%, No Condensation Type:1000M Colour:White Material:ABS Package Contents: 1 * POE Repeater Only the above package content, other products are not included. Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
