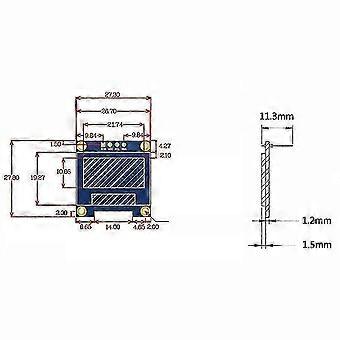

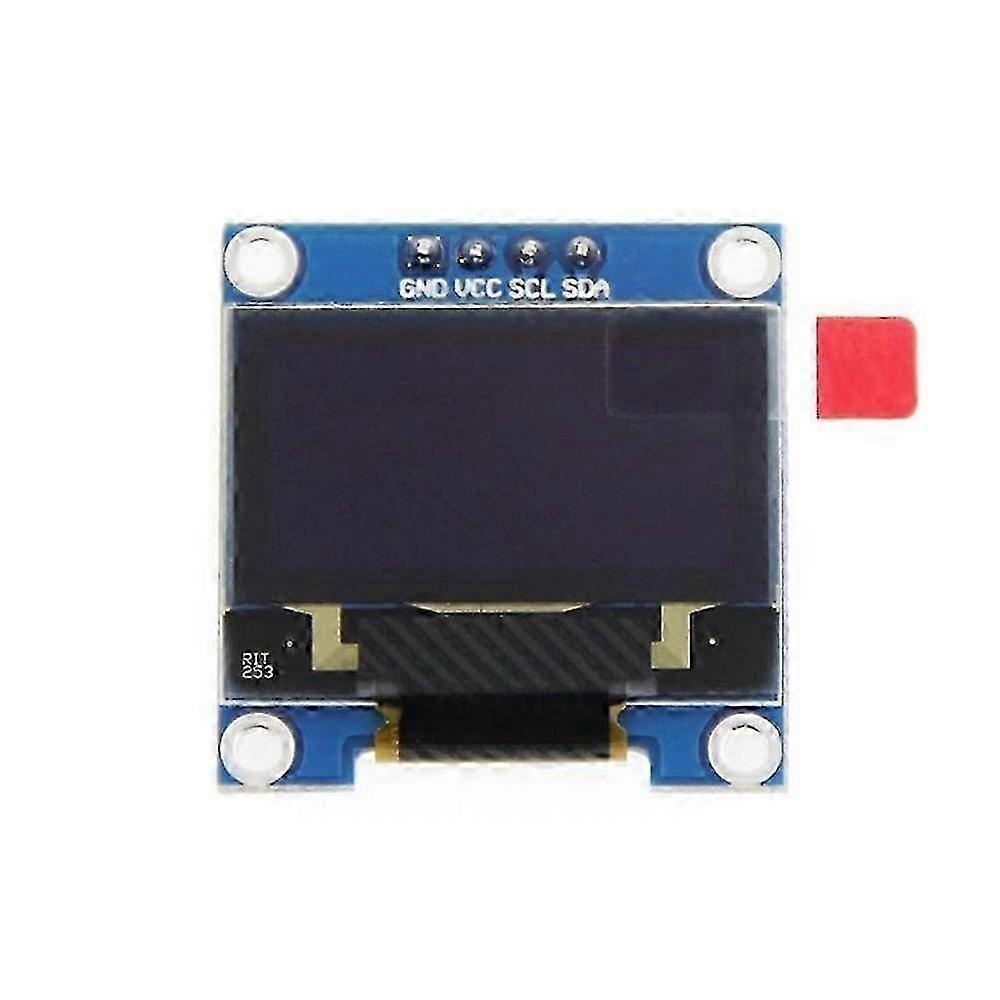

Description High resolution: 128x64 (have the same resolution as 12864, high ) viewing angle: 160 (a screen with the largest viewing angle in the monitor) Ultra-low power consumption: its 0.06w in normal condition(far less than TFT display) Wide voltage supply (3V-5V), 3.3V and 5V level logic compatible, no level shifter IC IIC interface and only requires 2 IOs to light up easily The range of working temperature is industrial (-20C-70C) -grade process standards, long-term work steadily Provide rich multi-platform routines and the technology support of underlying driver name: color ,category size: 0.96(inch) type: OLED OLED driver chip: Module interface: IIC,-GND,-VCC,-SCL,-SDA Effective display area: 21.744x10.864(mm) Module size 27.3x27.8(mm) storage temperature: -30-80 Working voltage: 3.3V / 5V power dissipation : Max:25mA,Min: 1.5mA product weight : 15(g) Interface definition PIN : label : Pin description 1 : GND:OLED GND 2 : VCC :OLED VCC input(3.3V-5V) 3 : SCL :OLED clock signal of IIC bus 4 : SDA :OLED data signal of IIC bus display color : white colour:as shown Material:Metal +pc Package Contents: 1 * 0.96 inch OLED LCD LED Display Module Only the above package content, other products are not included. Note: Light and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
